Author:
mgr inż. arch. LESZEK KALANDYK
| 1. Usable area | 395,20 m² |
| 2. Additional area | 47,68 m² |
| 3. Total surface | 717,59 m² |
| 4. Building area | 358,51 m² |
| 5. Net volume | 1801 m³ |
| 6. Gross volume | 2352 m³ |
| 7. Energy for heating | 63,1 kWh/m²*year |
| 8. Сeiling height | 2,79 / 2,81 / 2,85 m |
| 9. Minimum plot size | 31,81 x 26,40 m |
| 1. Foundation footings | reinforced concrete |
| 2. Ceiling | made of reinforced concrete |
| 3. Facade | facade plates, silicone plaster |
| 4. Windows and doors | anthracite aluminum |
| 5. Ventilation | mechanical with recuperation |
Ground floor
| Usable area | 283,52 + 47,68 m2 |
| 1. Lobby | 8,68 m2 |
| 2. Wardrobe | 5,00 m2 |
| 3. Office | 9,92 m2 |
| 4. Corridor | 8,82 m2 |
| 5. Wardrobe 2 | 6,16 m2 |
| 6. Bedroom | 13,37 m2 |
| 7. Bathroom | 4,92 m2 |
| 8. Pantry | 6,07 m2 |
| 9. Kitchen | 14,55 m2 |
| 10. Canteen | 20,34 m2 |
| 11. Living room | 24,44 m2 |
| 12. Corridor 2 | 7,50 m2 |
| 13. Bathroom 2 | 5,55 m2 |
| 14. Dry sauna | 3,63 m2 |
| 15. Fitness / Recreation | 70,68 m2 |
| 16. Corridor | 13,41 m2 |
| 17. Utility room | 12,81 m2 |
| 18. Garage | 47,68 m2 |

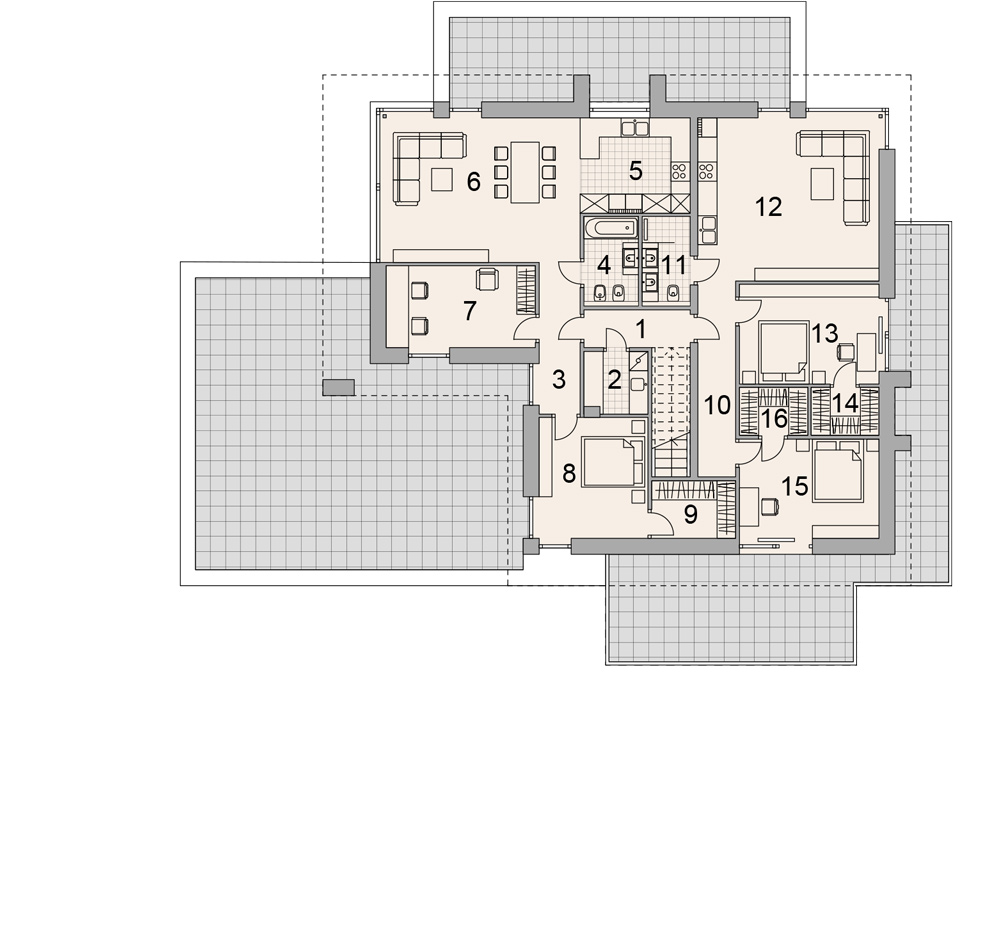

Floor
| Usable area | 159,35 m2 |
| 1. Corridor | 4,03 m2 |
| 2. Laundry room | 3,52 m2 |
| 3. Corridor | 6,13 m2 |
| 4. Bathroom | 4,28 m2 |
| 5. Kitchen | 9,95 m2 |
| 6. Living room | 27,83 m2 |
| 7. Office | 11,39 m2 |
| 8. Bedroom | 13,09 m2 |
| 9. Wardrobe | 4,83 m2 |
| 10. Corridor 2 | 7,69 m2 |
| 11. Bathroom 2 | 4,01 m2 |
| 12. Living room with dining area | 28,57 m2 |
| 13. Bedroom 2 | 13,84 m2 |
| 14. Wardrobe 2 | 3,11 m2 |
| 15. Living room 2 | 13,77 m2 |
| 16. Wardrobe 3 | 3,31 m2 |
What does the project contain?
Finished project is a documentation, consisting of 3 copies of architectural and construction design and technical design. It is made by authorized designers in accordance with the current rules of construction art and the latest provisions of the Construction Law.
